VIGILANT

The Beninca Rise VIGILANT is an automatic hydraulic bollard that has a high number of cycles and low power consumption. It is equipped with RS485 communication bus and ethernet connection via TCP/IP. The VIGILANT uses foundation cases and can be easily installed on site without welding. Equipped with anti-vandal function, which allows to detect a forced command, to reset the bollard and activate an alarm.

The HYDRA is available in the following variants:

Beninca Rise Vigilant Single Bollard Black 500mm

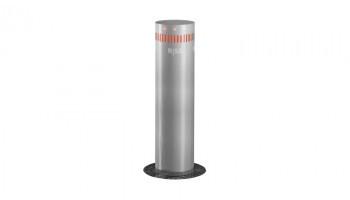

Beninca Rise Vigilant Single Bollard Stainless Steel 500mm

Beninca Rise Vigilant Single Bollard Black 800mm

Beninca Rise Vigilant Single Bollard Stainless Steel 800mm

Beninca Rise Vigilant Bollard Kit Black 500mm

Beninca Rise Vigilant Bollard Kit Stainless Steel 500mm

Beninca Rise Vigilant Bollard Kit Black 800mm

Beninca Rise Vigilant Bollard Kit Stainless Steel 800mm

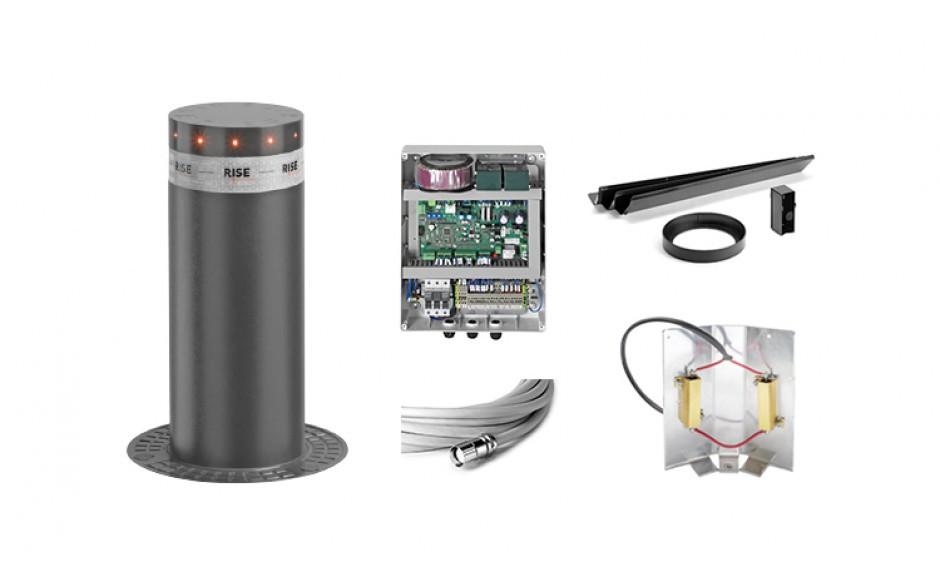

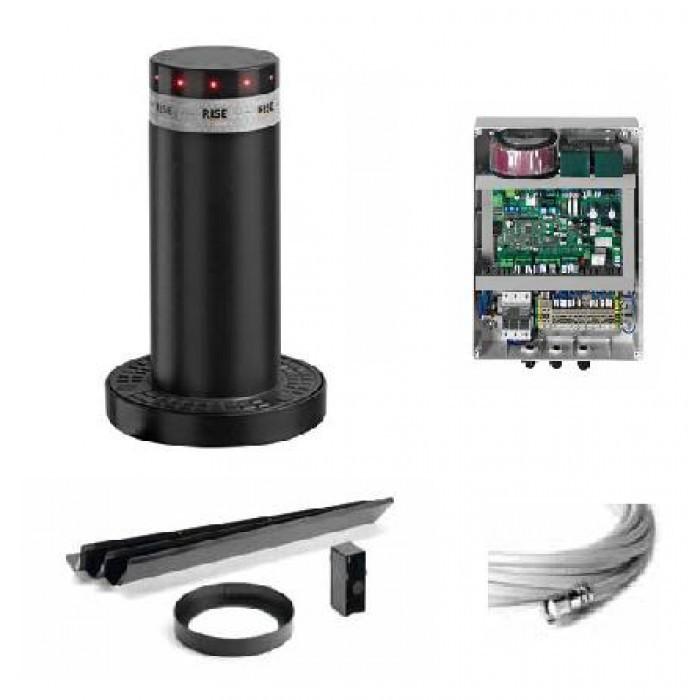

The Beninca Rise VIGILANT comes with:

• 1 x Bollard
• 1 x RES heating element
• 1 x Foundation base
• 1 x 10m cable

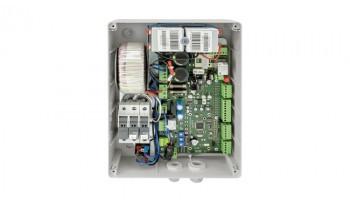

• 1 x CP Control panel

Specifications:

• Power Supply: 230Vac 50/60 Hz
• Motor Supply: 24 Vdc
• Absorbed Power: 90 W
• Absorbed Current 24 Vdc: 6 A
• Standby Consumption: 10 W
• Consumption During Rising: 1 A
• Maximum Working Frequency: 1,200 cycles/day
• Protection Level: IP68
• Operating Temperature: -20°C/+50°C
• Lubrication: Grease
• Impact Resistance: 11.000 J
• Breakout Resistance: 180.000 J
• Kg Vehicle-km/hour: 1.800 - 55
• Raising Time 120 mm/sec: 4s
• Lowering Time 160 mm/sec: 3s
• Electric Brake: 2 N
• Weight (Without foundation case): 84/90 kg
