BULL

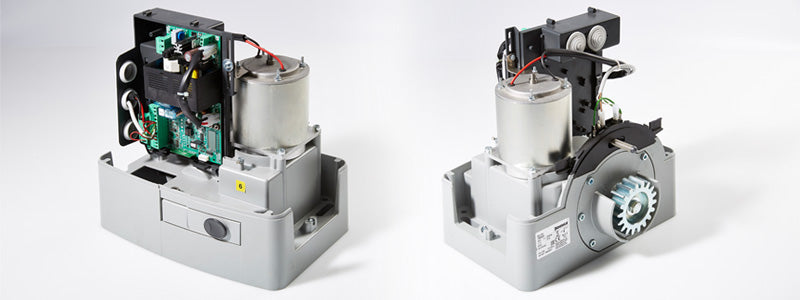

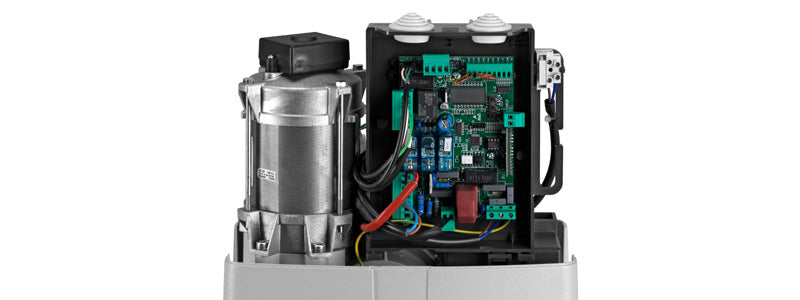

The Beninca BULL is a single-phase gate operator with a built-in control panel that allows rapid and hassle-free opening and closing. It has a horizontal and vertical fitting position that are completely adjustable.

This electromechanical geared sliding gate motor is ideal for use in both residential and commercial establishments with its fast and easy wiring installation and maximal safety guarantee.

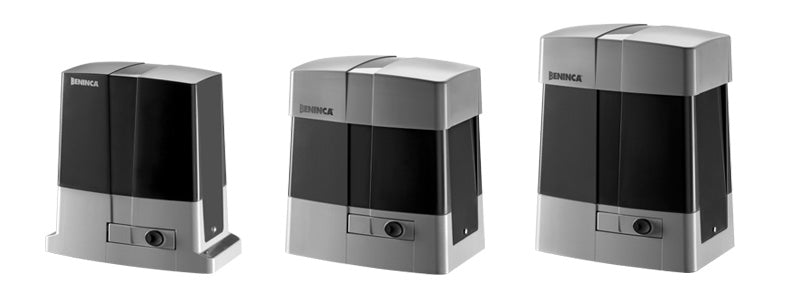

The BULL is available in the following variants:

• BULL624 – 24V Sliding Gate Motor for gates up to 600 kg
• BULL8OM– 230V Sliding Gate Motor for gates up to 800 kg
• BULL1024 – 24V Sliding Gate Motor for gates up to 1,000 kg
• BULL15M – 230V Sliding Gate Motor for gates up to 1,500 kg

The Beninca BULL Kit includes:

• 1 x BULL Sliding Gate Motor – Built-In Control Panel
• 1 x PUPILLA Photocells
• 1 x AW 433.92MHz Long Range Aerial
• 2 x TO.GO2WV 2 Button Transmitters
• 4 Metres of Toothed Drive Rack

Specifications:

• Automation Type: Sliding
• Maximum Gate Weight (kg): 1,500
• Working Temperature (°C Min/Max): -20°C/+70°C)
• Speed (m/s) : 630
• Protection Level (IP): 54
• Torque (Nm): 45
• Capacitor (µF): 25
• Lubrication: Agip GR MU EP/2
• Noise Level (dB) : <70
